Narrow Galley Kitchen Renovation in Sutton – Bespoke Fitted Kitchen by JoinerXpert
This project in Sutton, Surrey is a full kitchen renovation focused on transforming a narrow galley space into a highly functional and visually clean modern kitchen. The goal was to maximise storage, improve workflow ergonomics, and create a seamless fitted look using bespoke joinery. Every element — from the cabinet depth to the worktop overhang — was sized specifically for this kitchen, not taken off a standard catalogue.
Project Overview – Kitchen Renovation in Sutton
- Location: Sutton, Surrey
- Type: Full kitchen renovation
- Scope: Strip-out, plastering, tiling, installation, bespoke joinery
- Style: Modern handleless kitchen with integrated appliances
- Materials: Lacquered fronts, Blum hardware, laminate oak-effect worktop, subway tile splashback

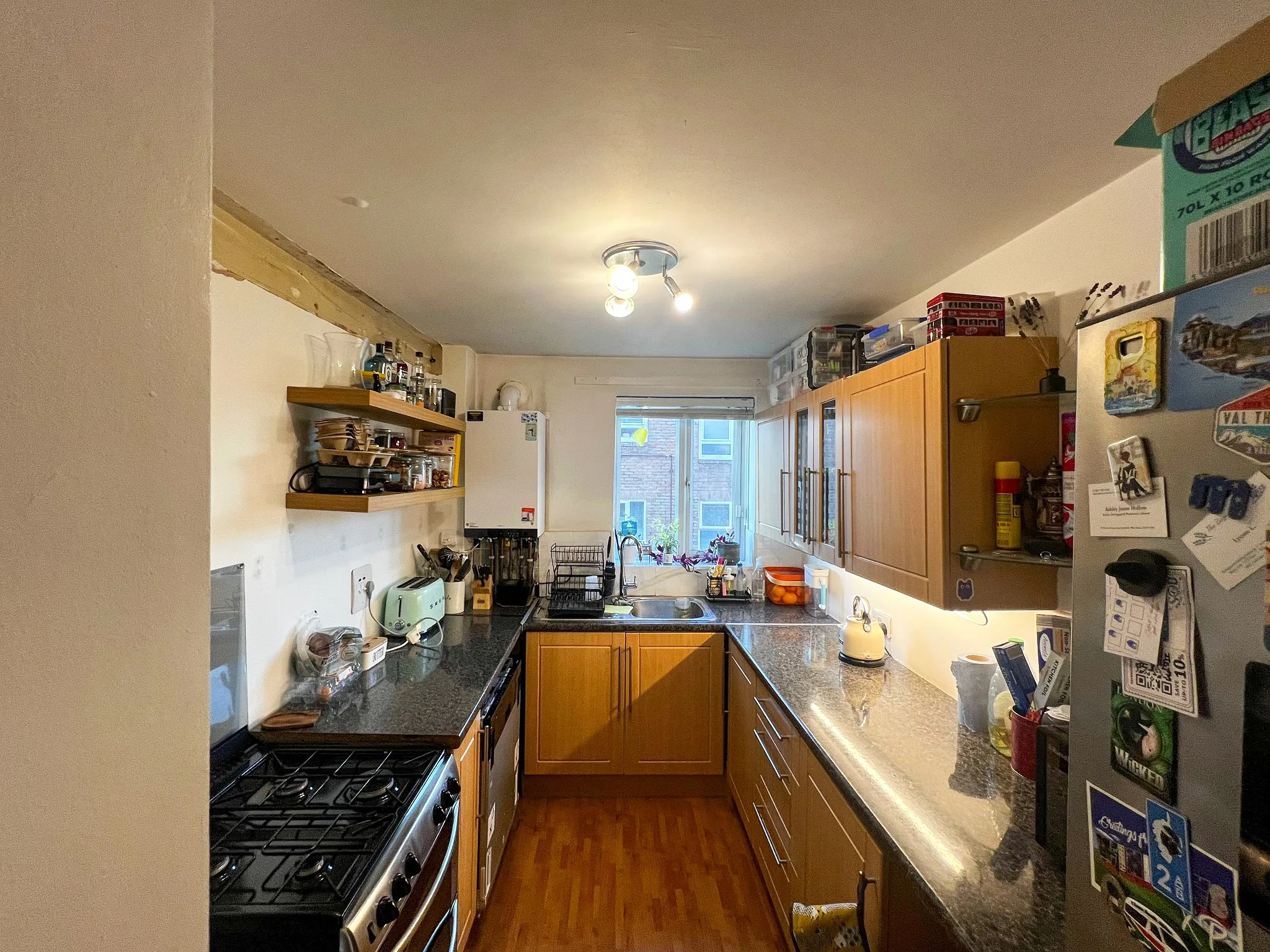

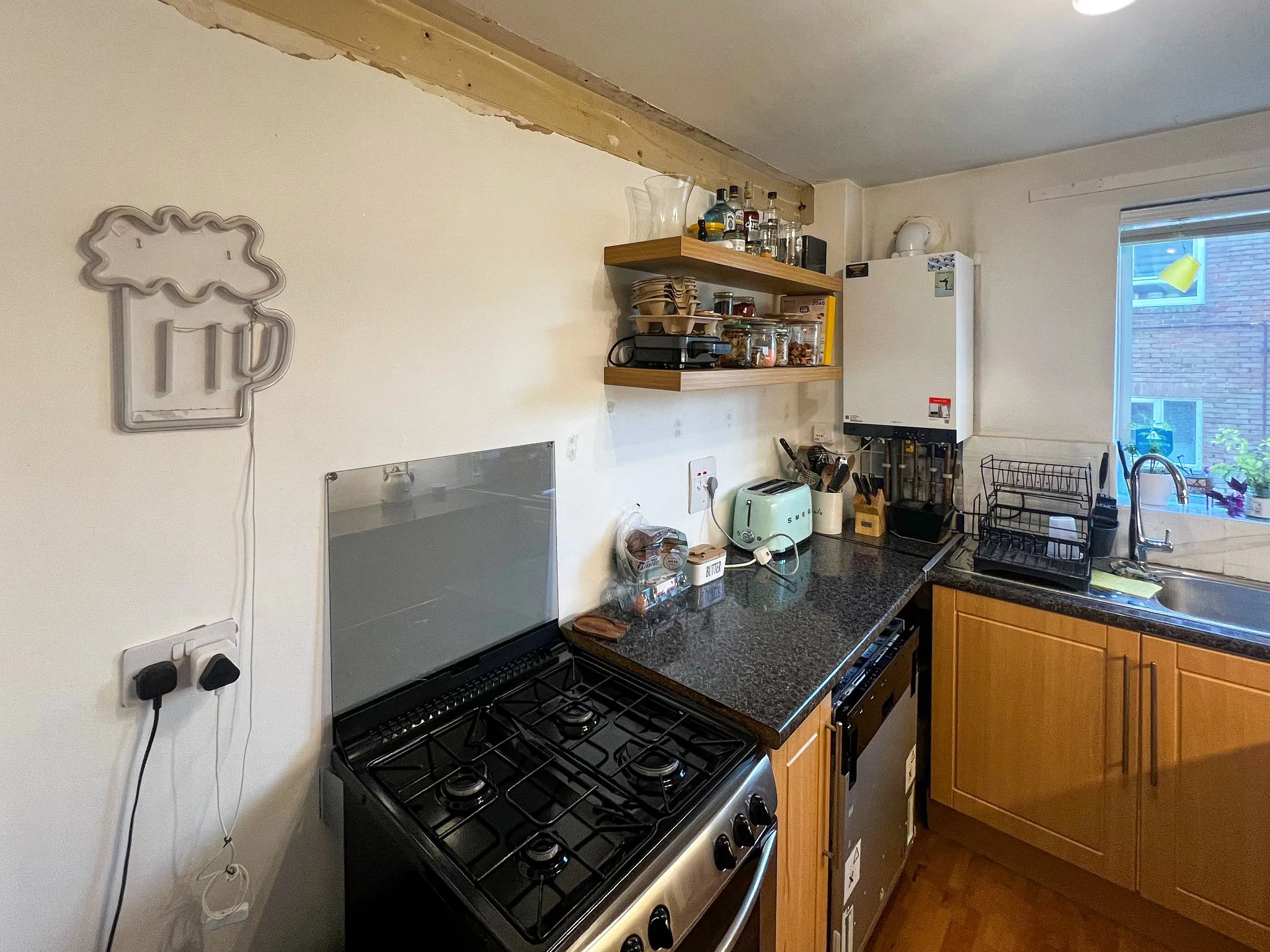

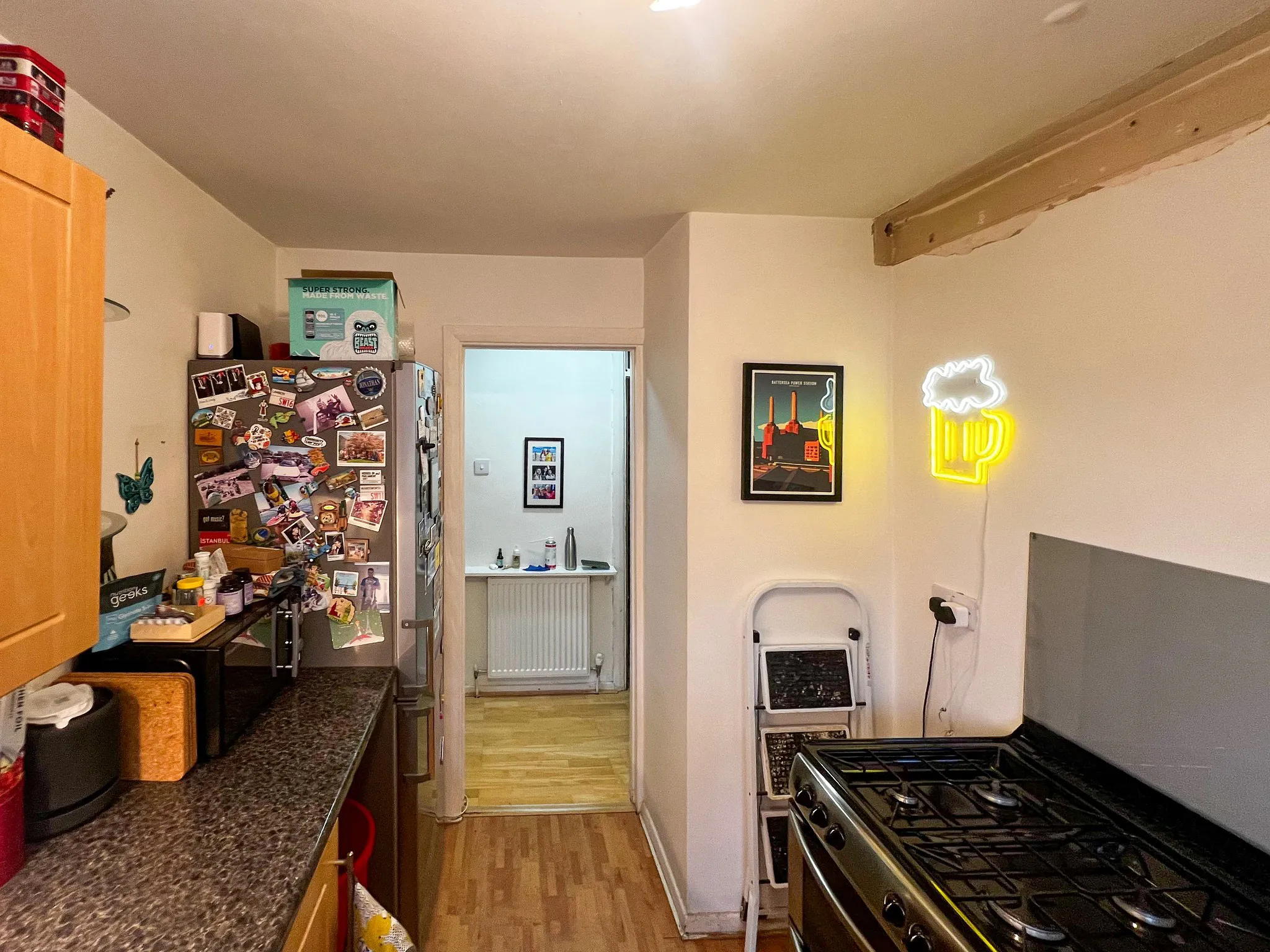

Before — Outdated and Inefficient Layout
The original kitchen was outdated, visually cluttered, and poorly optimised for daily use. Limited storage and an inefficient layout made cooking uncomfortable, especially in such a narrow space. The units didn't reach the ceiling, leaving dead space at the top that collected dust. The worktop was too shallow on one run. The boiler occupied a corner without any housing around it, interrupting the cabinet line and making the room feel unfinished.
Preparation and Structural Work

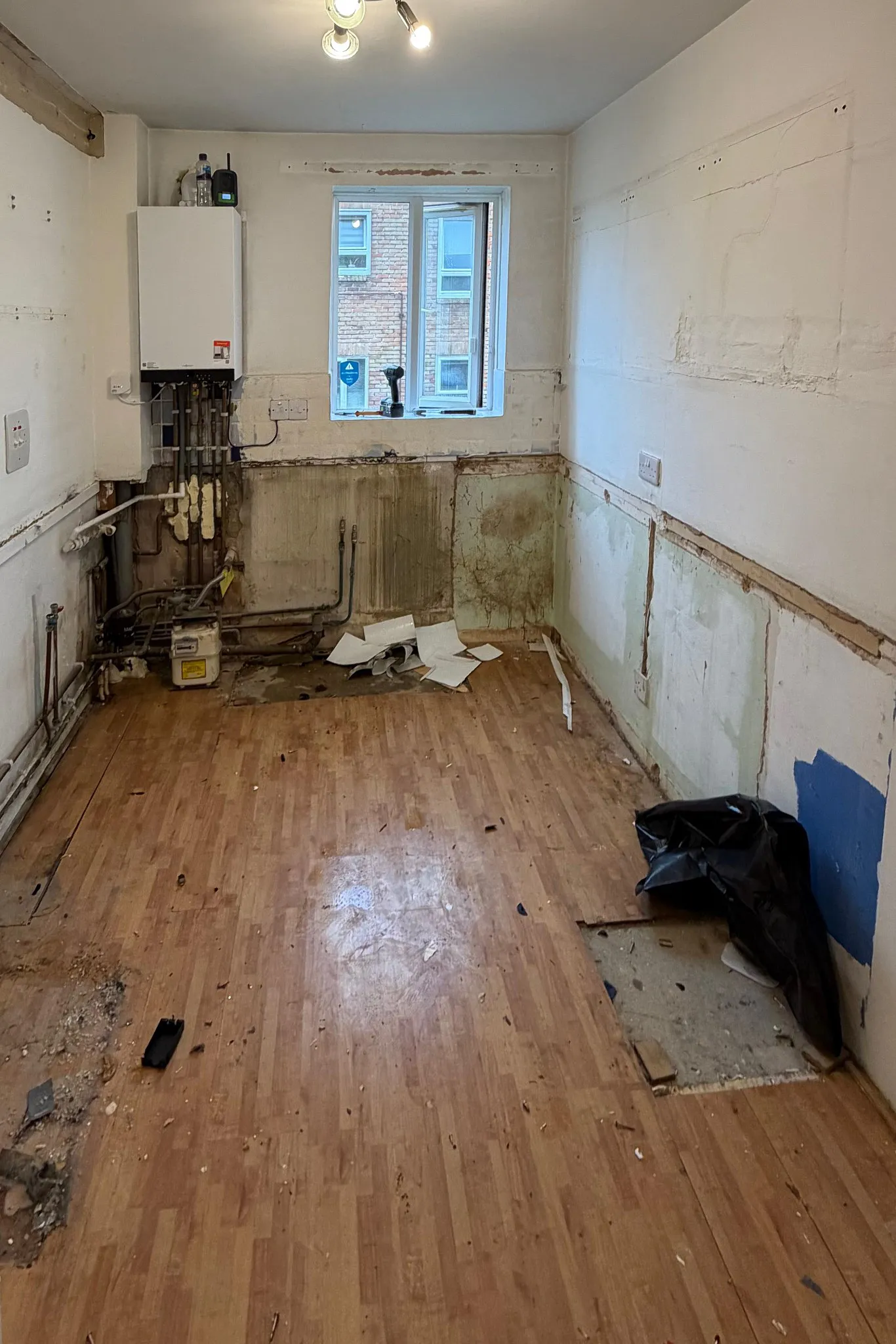

- Full removal of old kitchen units and finishes

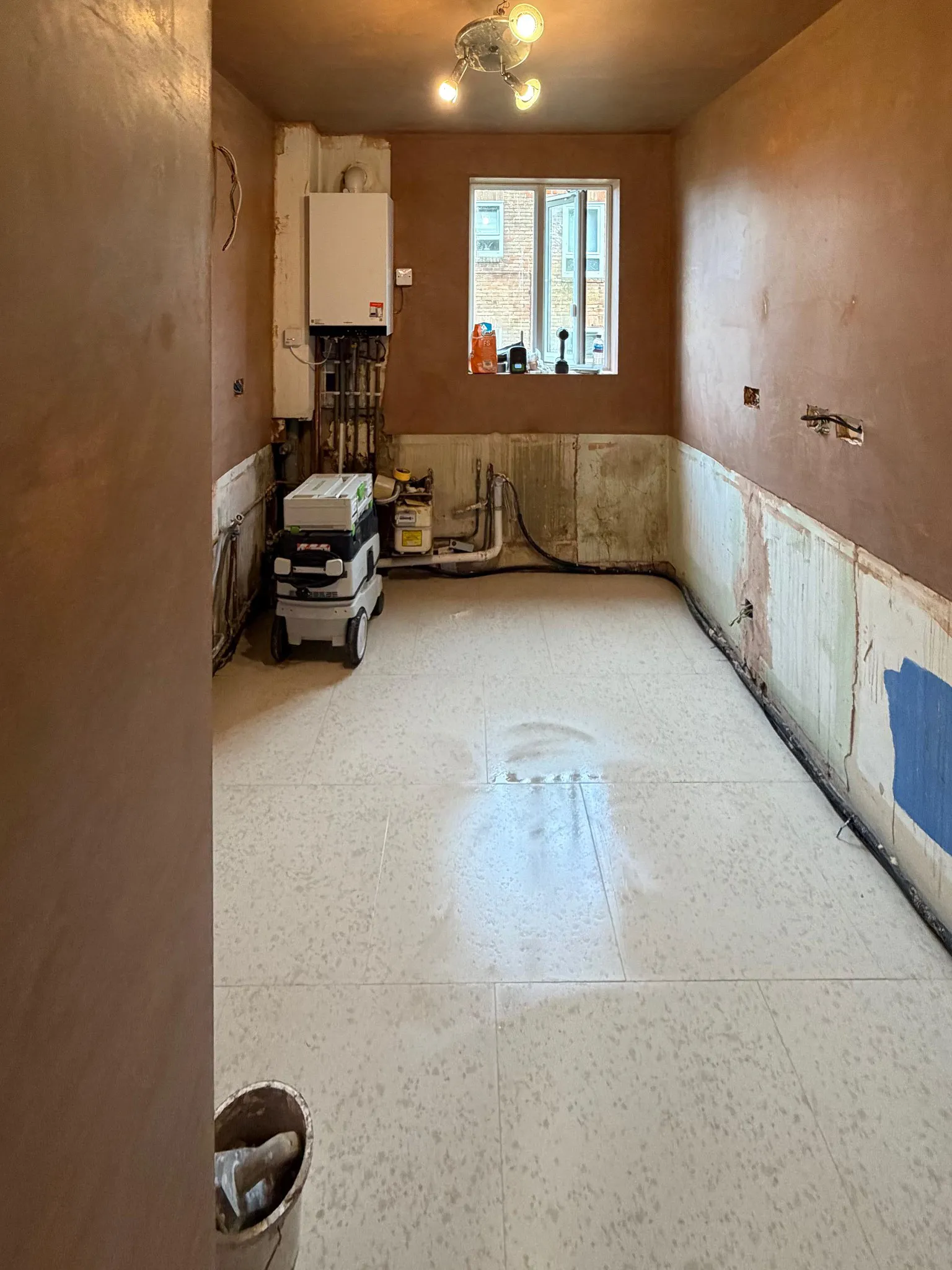

- Wall preparation and replastering

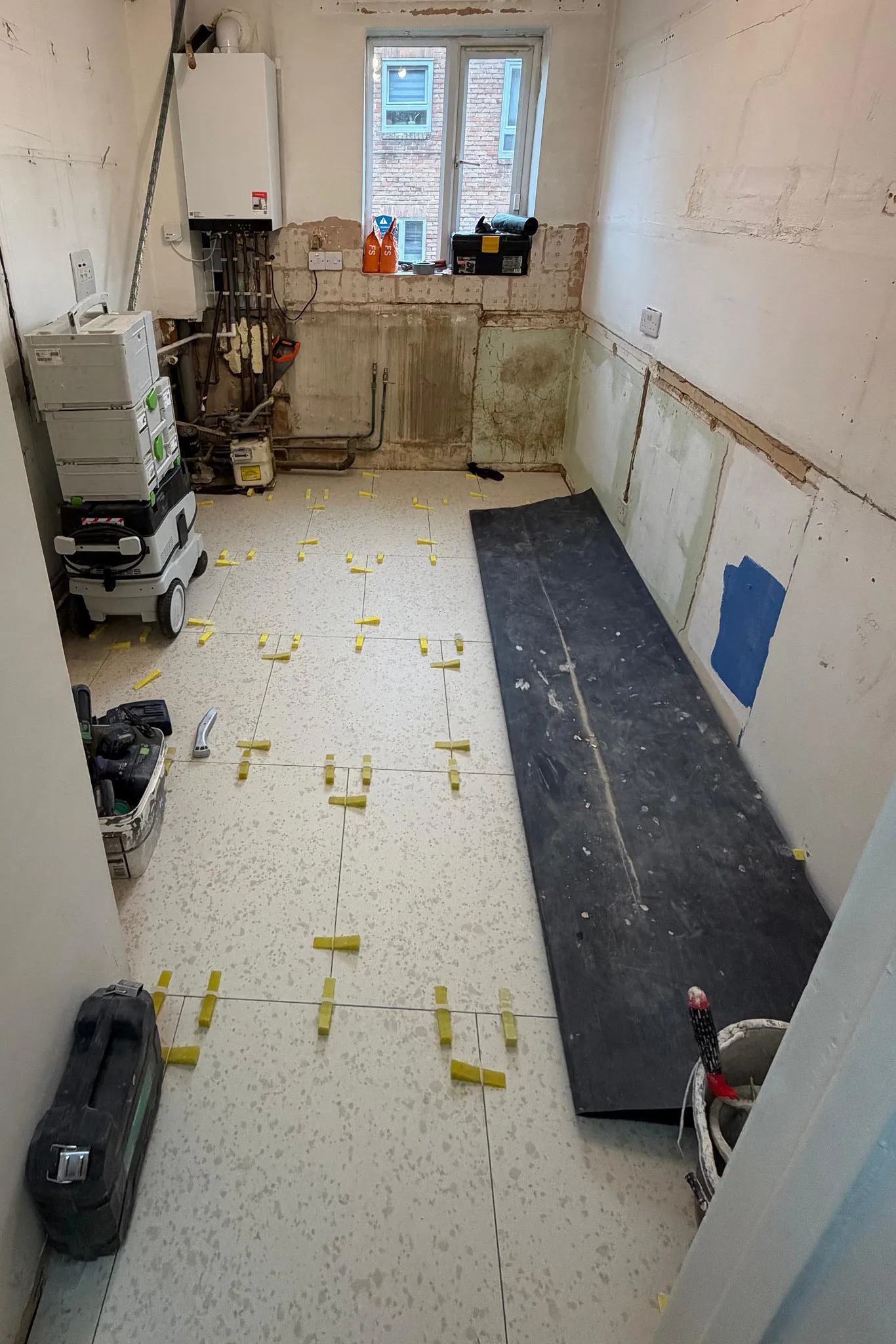

- Floor preparation and levelling
- Electrical and plumbing adjustments to match the new layout
Proper preparation was critical to achieve clean lines and a precise fitted finish. In a narrow galley, any deviation in the wall plane — even a few millimetres — shows in the cabinet gap and the worktop joint. We skimmed the walls before anything went back in.
Design Challenge — Narrow Galley Kitchen
The biggest challenge was the limited width of the kitchen. Every centimetre had to be planned carefully to ensure comfortable movement and efficient workflow. In a galley layout, the distance between the two facing runs determines how usable the space is — too narrow and you can't open the oven door and stand back at the same time; too wide and you've wasted run length that could have been cabinet.
- Optimised working triangle (hob – sink – storage)
- Maximised storage without overcrowding the visual field
- Maintained clear walking space between runs
- Integrated appliances to keep the front face uninterrupted
- Custom housing built around the boiler to absorb it into the cabinet line
Bespoke Fitted Kitchen — Materials and Finish
- Lacquered fronts — smooth, flat finish in a mid-grey
- True handleless system with J-pull profile integrated into the top edge
- Blum hardware throughout — soft-close hinges, Tandembox drawer system
- Laminate worktop with an oak grain finish — visual warmth without timber maintenance

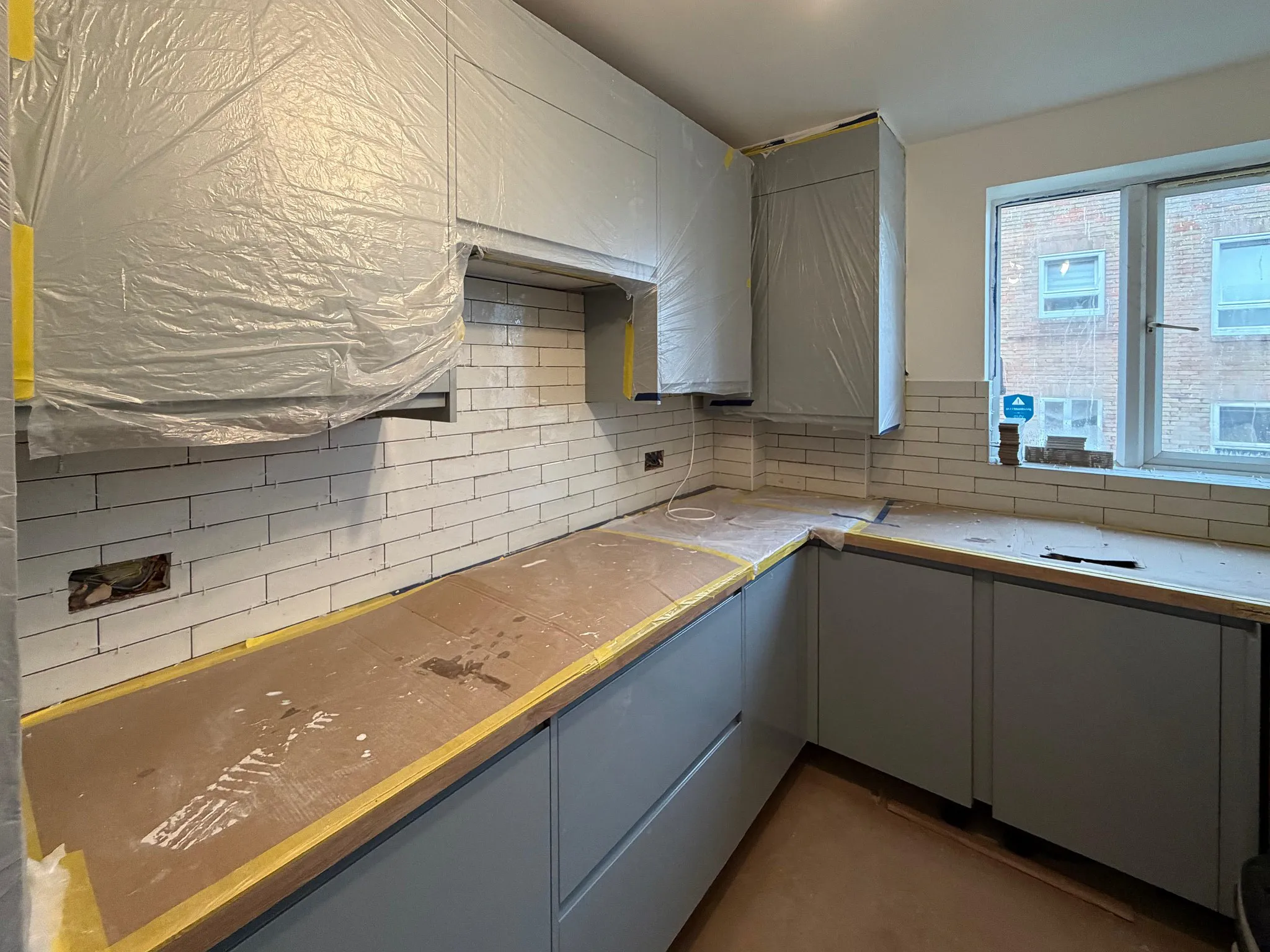

- White subway tiles (100×200mm) laid in a brick bond pattern for the splashback

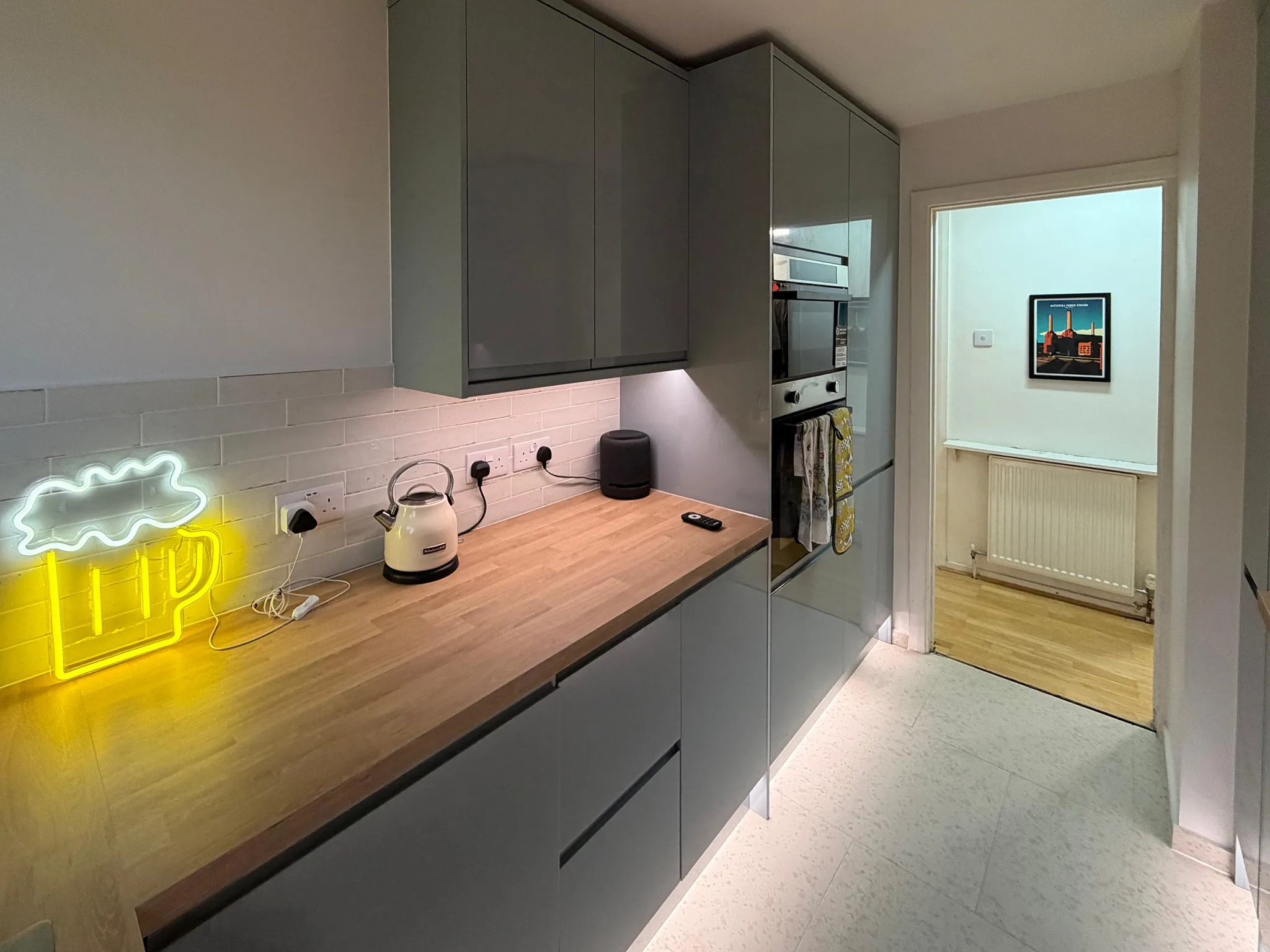

- Warm LED strips under the wall units, wired to a dimmer switch
The worktop was selected to deliver the visual warmth of natural timber while ensuring durability and ease of cleaning in daily kitchen use. The laminate profile has a tight radius edge — it reads as contemporary rather than retro.

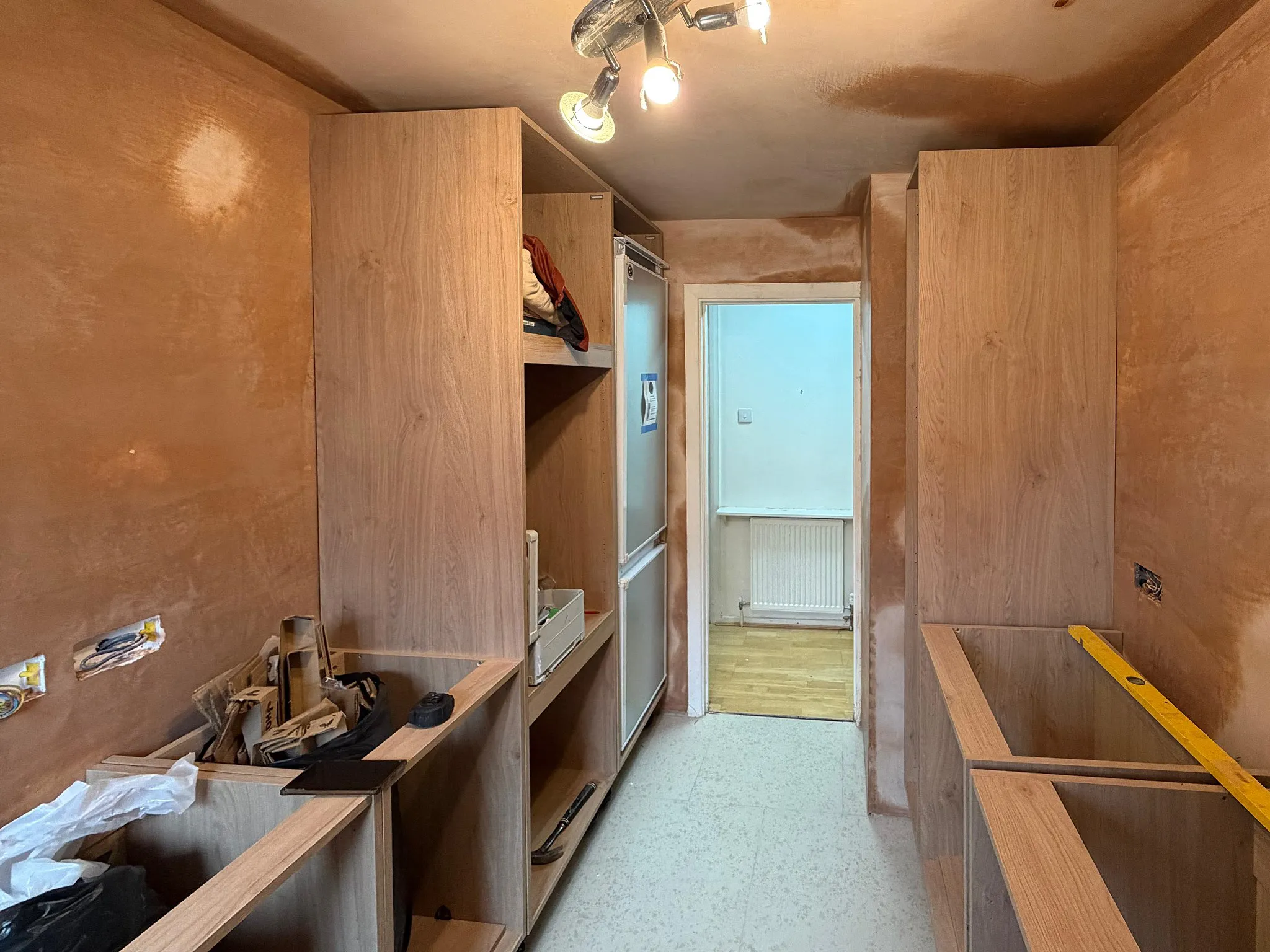

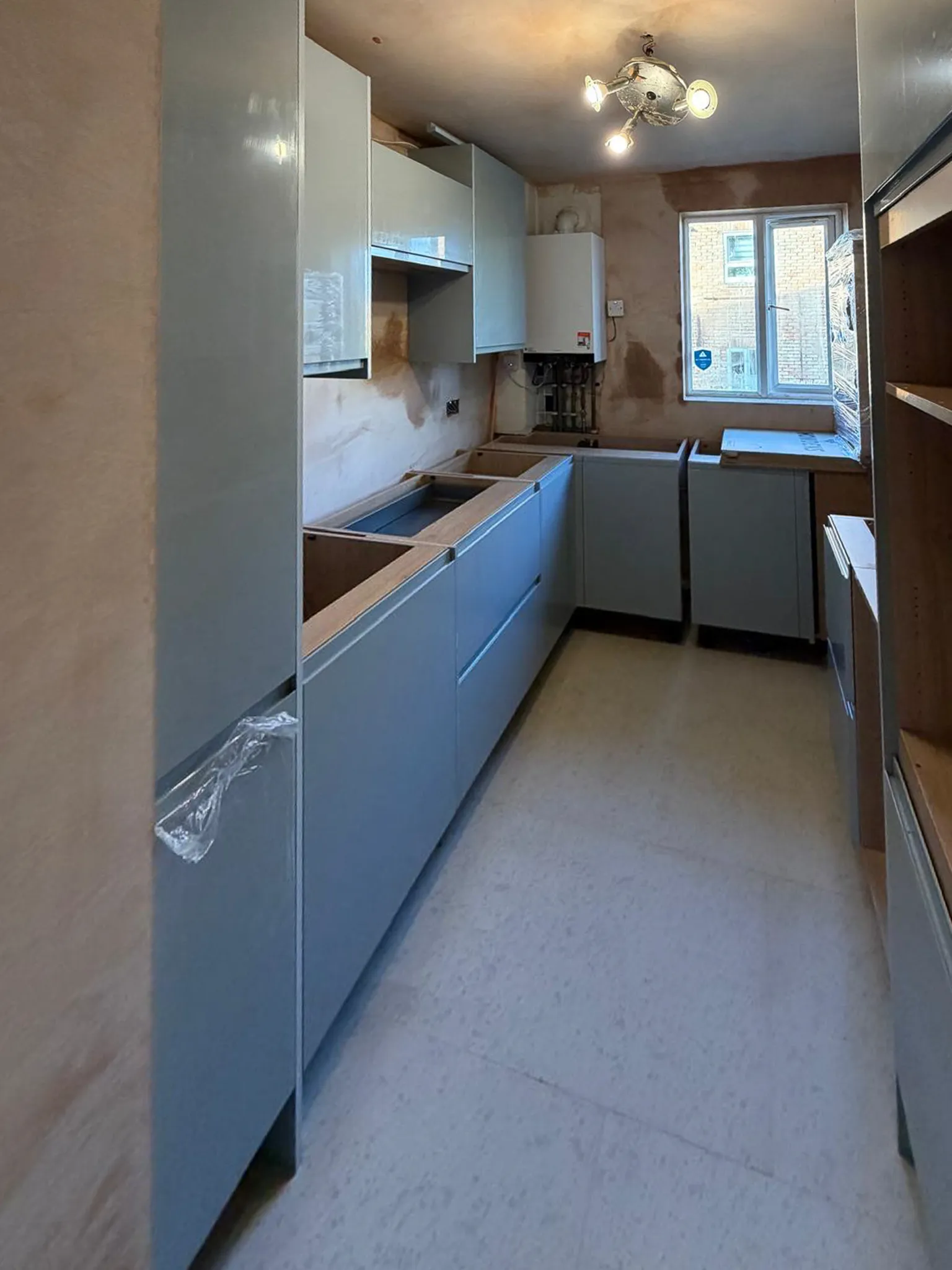

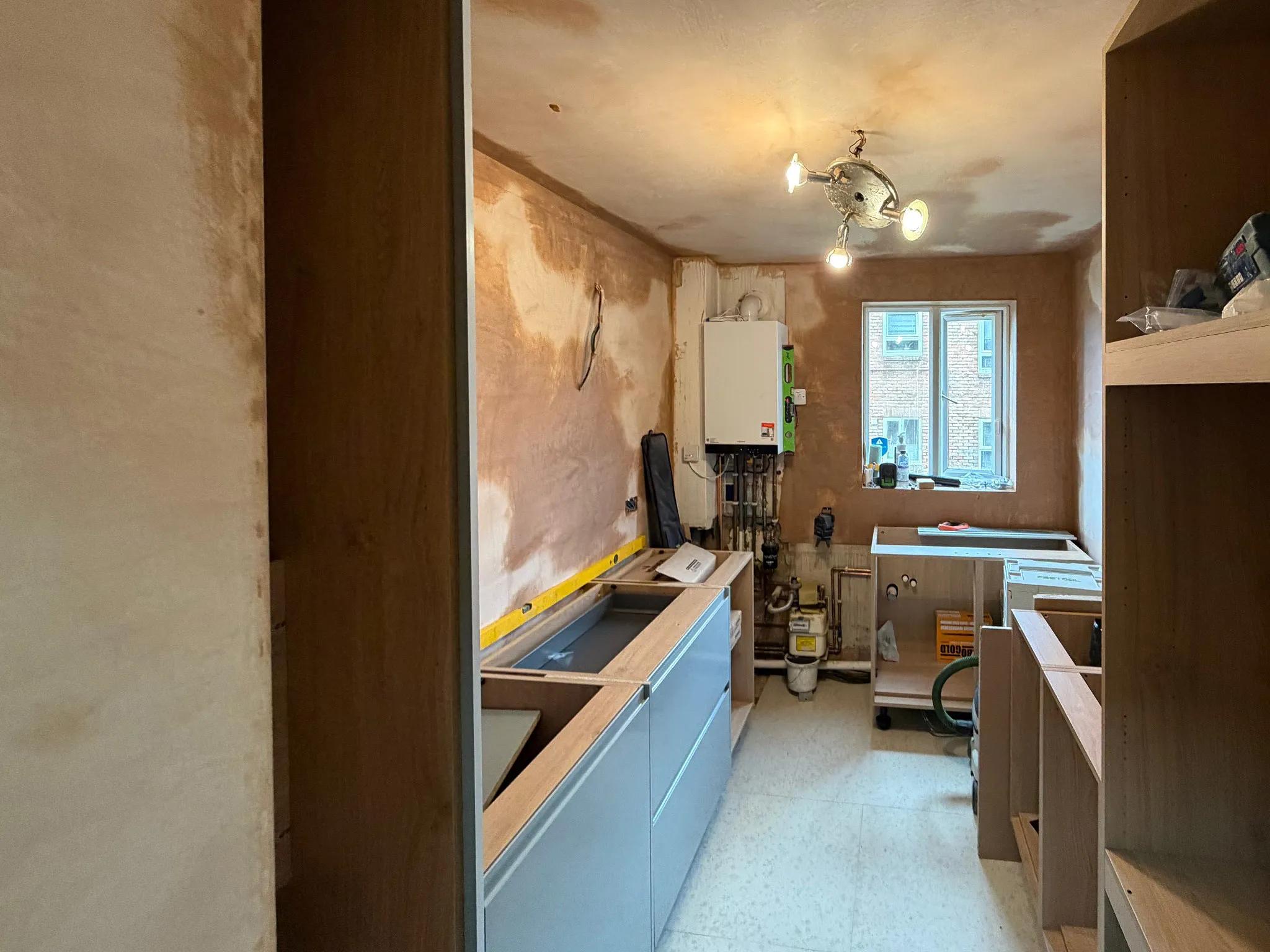

Installation Process
- Precision installation of base and wall units, checked level and plumb at each run

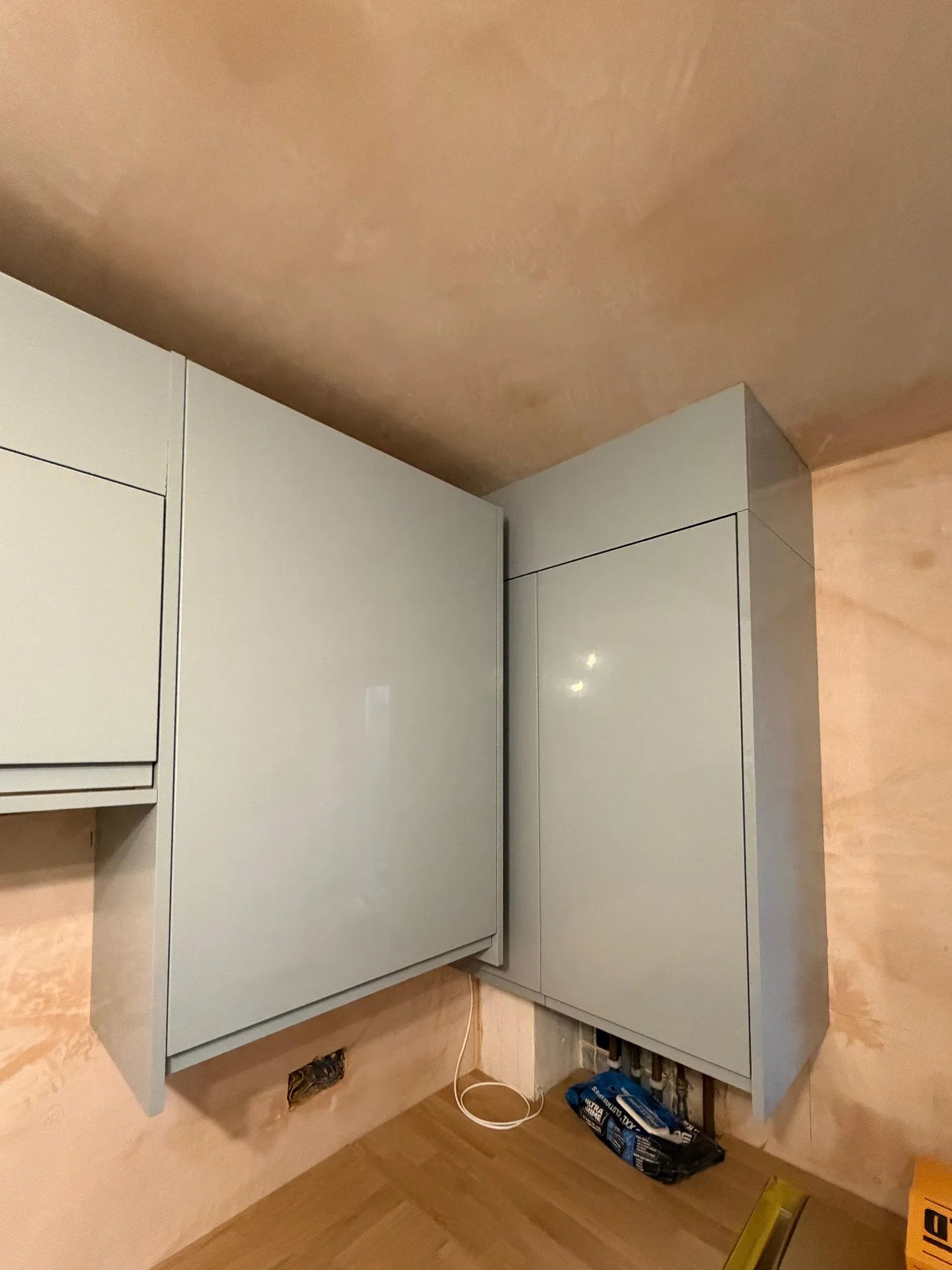

- Custom housing built to absorb the boiler into the cabinet line
- Worktop fitted and scribed to the walls at both ends
- LED lighting wired and dimmer switch fitted
- Final detailing: plinths, cornices, end panels, silicone lines
All elements were installed with a focus on tight joins, precise alignment, and long-term durability. The handleless J-pull profile requires the top of each door to be level to within a millimetre — any variance is visible when you run your hand along the profile. We checked every door before calling the installation complete.

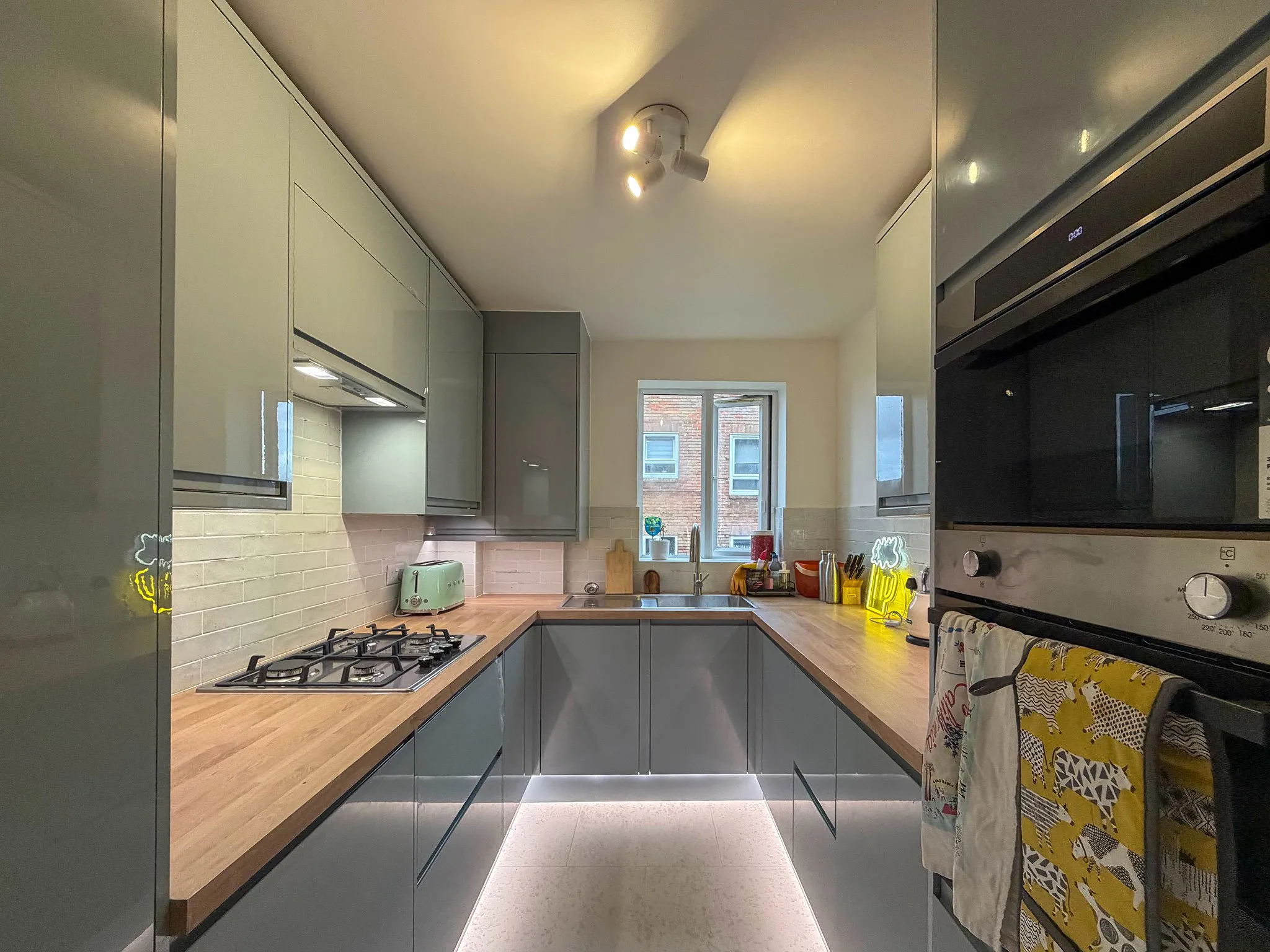

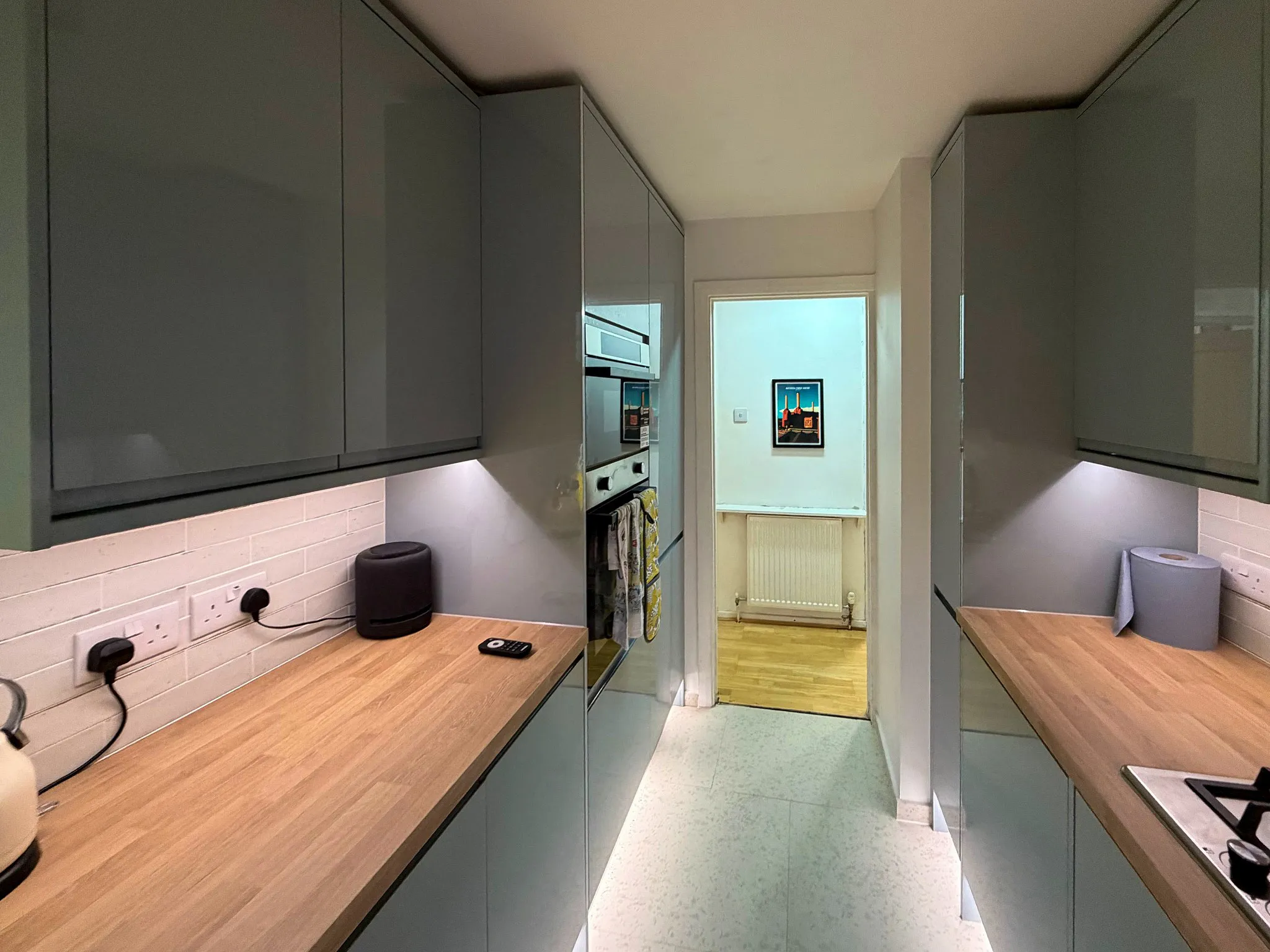

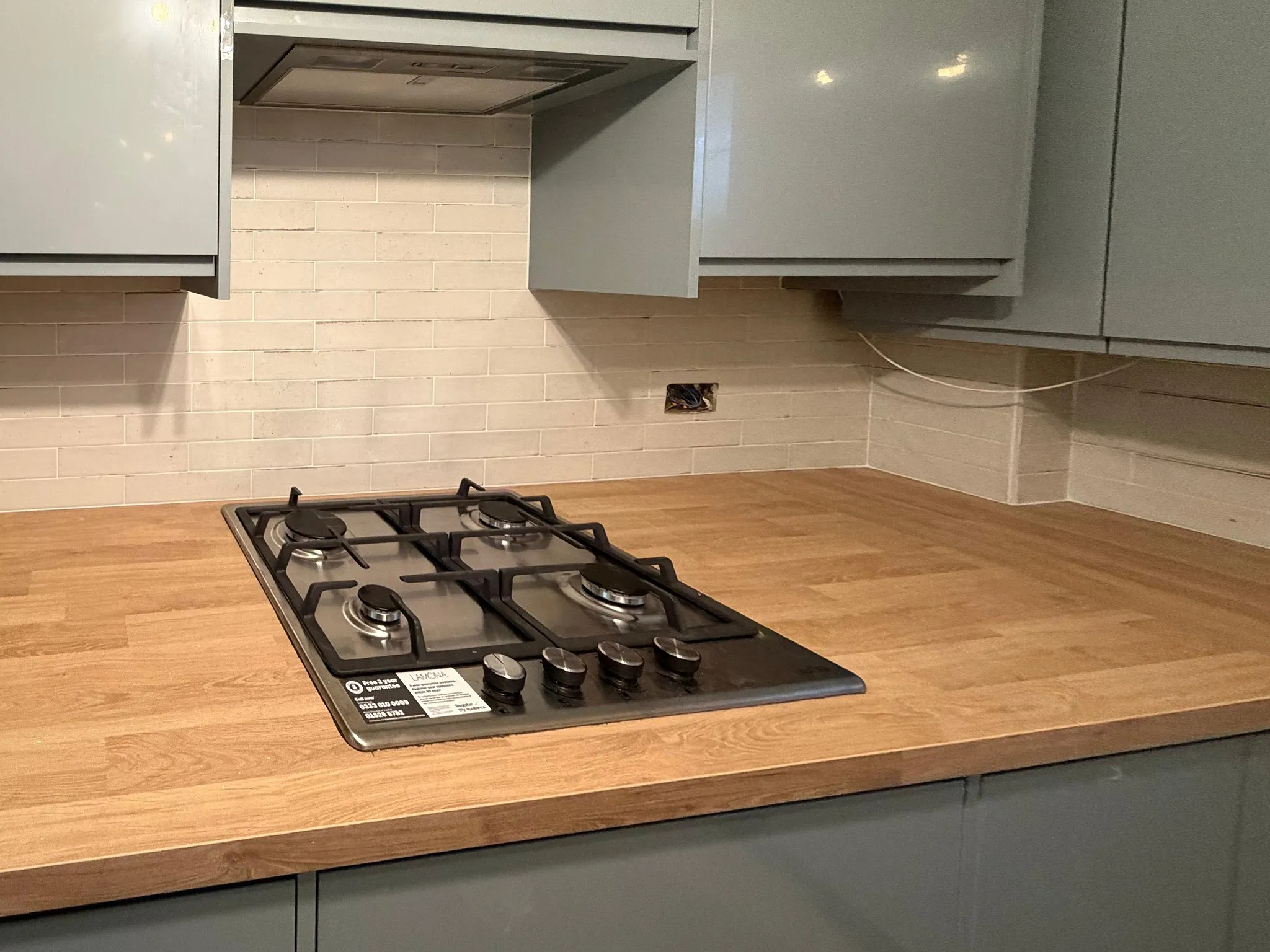

After — Functional and Modern Kitchen
The final result is a clean, modern kitchen that feels significantly more spacious despite the original constraints. The handleless design and integrated appliances create a seamless front face. The improved layout — hob on one run, sink on the other, fridge at the end — puts everything within two steps. The boiler, previously an eyesore, disappears behind a matching cabinet door with a ventilation grille. The ceiling-height units add storage that the old kitchen didn't have.
Why Bespoke Works Better in a Narrow Kitchen
Off-the-shelf kitchen units come in fixed widths: 300mm, 400mm, 500mm, 600mm. In a narrow galley where the total run might be 2850mm, you're either leaving a filler gap or forcing a non-standard appliance position. Bespoke joinery means the cabinet widths are set to fill the run cleanly, the worktop overhang is sized precisely for the space, and features like the boiler housing are designed into the cabinet layout rather than worked around after the fact.
In a standard-width kitchen the difference between bespoke and off-the-shelf is mostly aesthetic. In a narrow galley, it's functional — the space either works or it doesn't, and standard units are often the reason it doesn't.
Frequently Asked Questions — Kitchen Renovation in Sutton
How long does a kitchen renovation take in Sutton?
A full kitchen renovation — strip-out, plastering, installation and finishing — typically takes two to four weeks depending on scope. This project in Sutton ran over three weeks: one week for strip-out and preparation, two weeks for installation and finishing. Projects that don't need replastering run faster. The main variable is drying time for any plaster or adhesive work, which can't be rushed without affecting the finish.
Can a narrow kitchen be made more functional with bespoke joinery?
Yes — in fact, bespoke joinery makes the biggest difference in narrow kitchens precisely because standard unit widths rarely fit narrow runs cleanly. In this Sutton project, cabinet widths were set to fill the run without fillers, the worktop was scribed to fit the walls at both ends, and the boiler housing was built as an integrated cabinet rather than added as an afterthought. The result is a kitchen that uses every available centimetre rather than working around it.
What is a handleless kitchen and is it practical?
A handleless kitchen uses an integrated profile — typically a J-pull routed into the top edge of each door and drawer — instead of separate handles. The practical advantage in a narrow galley is that there are no protruding handles to catch on as you move between the two runs. The visual advantage is a flat, uninterrupted front face that makes a small kitchen look larger. The trade-off is that alignment has to be precise — any vertical variation in door height is visible when you run your hand along the J-pull line.
Is bespoke kitchen furniture worth the investment in a small kitchen?
In a small or awkward-shaped kitchen, bespoke joinery is often the only way to make the space work properly. Standard units are designed for standard kitchens; bespoke units are sized and detailed for the actual space. The cost premium over a mid-range off-the-shelf kitchen is real, but in a narrow galley the functional difference is significant — the kitchen either fits and works, or it doesn't. Bespoke is what makes it fit.
Do you offer kitchen renovations across Sutton and Surrey?
Yes — we work across Sutton, Cheam, Worcester Park, Carshalton, Kingston and the wider Surrey area. We also cover South London including Tooting, Balham, Clapham and Croydon. Every project starts with a site visit so we can measure the space and understand the constraints before giving a quote.
